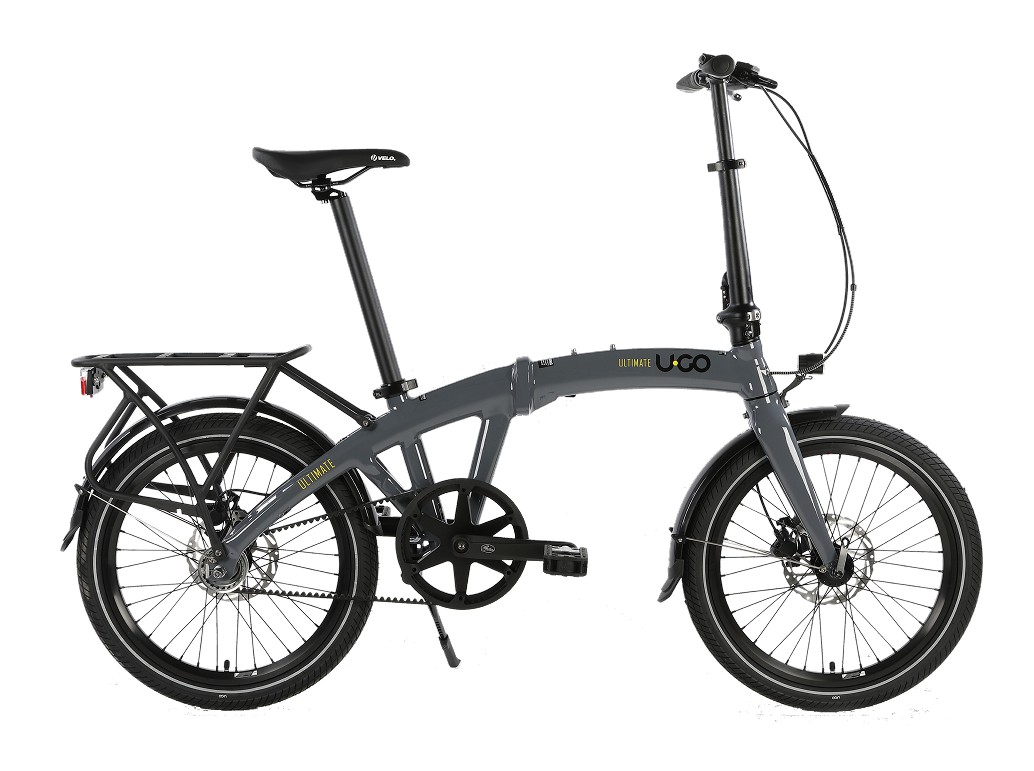

Ultimate U•GO i8- Folding bike 20"

Shimano 8-speed Nexus| Hydraulic brakes | Beltdrive|Cool Grey
.

Ultimate i8 vrijstaand voor website
Back to overview

The Ultimate frame model is characterized by the curved top tube. This frame is slightly longer and the fork is slightly wider compared to the DARE frame. This geometry guarantees a super stiff aluminum frame that is extremely suitable for the sportier and demanding user. Combined with a complete groupset, this makes these models perfectly suited for short and long distances. Dare to get the most out of it..

  • Cool Grey
  • Shimano Nexus 8-speed
  • Tektro HD-T280 hydraulic brakes
  • No chain, but belt drive
  • Raised carrier with MIK system, suitable for pannier(s)
  • Aluminum frame with concealed welds, improved frame latch, and concealed cabling
  • Weight 14,5 kilograms
  • 20-inch wheels
  • Aluminum carrier
  • Maximum rider weight: 105KG

General  information about the Ultimate U•GO i8

General

COLOUR   Cool Grey
FRAME SIZE   One Size
GEARS   Shimano Nexus 8-speed
MODEL YEAR   2026
WEIGHT   14,5 kilogram
ARTICLE NUMBER   4271480N

Frame

MATERIAL   Aluminium

DISTANCE BETWEEN SADDLE AND HANDLEBAR



64 centimeter

DISTANCE SADDLE TO PEDAL

   78 - 97 centimeter
FOLDING MEASURE

Cockpit

HANDLEBAR SECTION   Matt black, adjustable
SEAT POST   Matt black, aluminium

Ø33,9 x 580 mm with clamp
GRIPS   Ergonomic,  rubber
SADDLE   Ergonomic, 3049DRN

Drive

FRONT HUB   KT with Quick Release
REAR HUB

Shimano Nexus 8-speed, freewheel
CRANKSET
Gates beltdrive, aluminium crank ø9/16*170mm JIS, 60T
SHIFTERS
Shimano Revo SL-C6000 Nexus 8-speed
CHAIN   KMC
PEDALS   Folding pedals

Brakes

FRONT

Tektro HD-T280 hydraulisch, 2-piston, rotors ø160mm
REAR

Tektro HD-T280 hydraulisch, 2-piston, rotors ø160mm
BRAKE LEVERS
Tektro HD-T280 hydraulisch 2-finger lever

Wheels

SIZE   20 inch
TYRES

U•GO by Innova 20"x 2,10 anti-puncture with reflection

Other  parts

LIGHTNING   Headlight and taillight
MUDGUARDS   20“x60mm, plastic with stainless steel bolts
LUGGAGE CARRIER   Raised aluminium carrier with MIK system
STANDARD   Side stand
BELL   On handlebars, black
